| Menşe yeri | ÇİN |
| Marka adı | SUMA |
| Sertifika | ISO SGS |
| Model numarası | CF-1-3/4-SB |

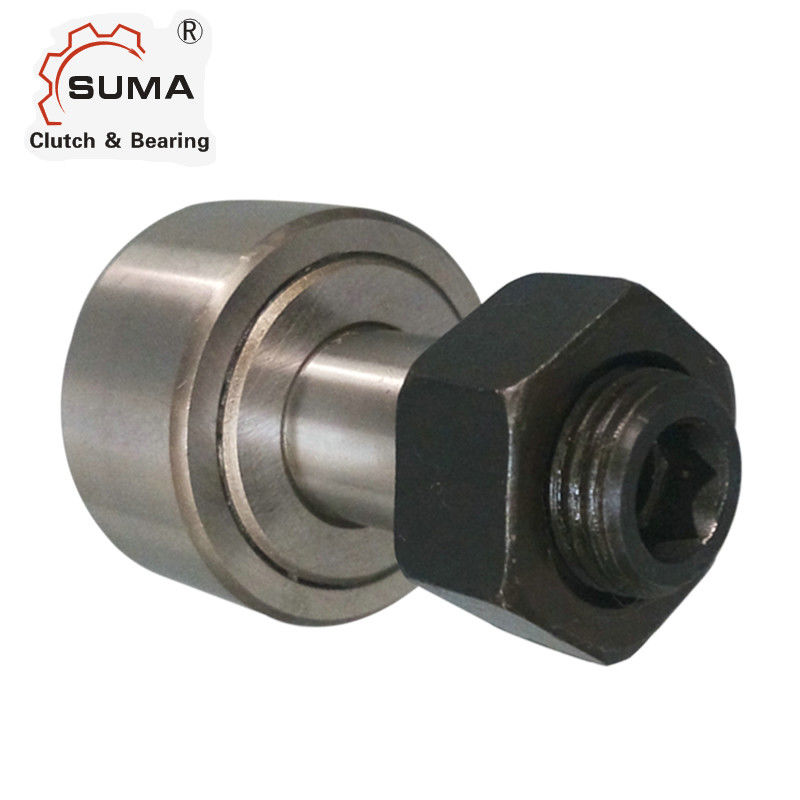

CF-1-3/4-SB Saplama Tipi Silindirik Makaralı Takip Kamı
Özellikler
işlenmiş kalın duvarlı dış halka
iğneli silindirler veya silindirik silindir setleri
kafes kılavuzu veya tam tamamlayıcı iğneli makara
iç halka veya cıvata ve conta
Teknik Veriler
| Mühürsüz No. |
Mühürlü No. |
Silindir Çapı(RD) |
Silindir Genişliği (W) |
Saplama Çapı (SD) |
Damızlık uzunluk (SL) |
Min Thrd Uzunluğu (TL) |
İnce İplikler |
Lub Uydurma Boyutu (F) |
Tok Lbs |
Statik Kapasite Lbs |
Dinamik Kapasite Lbs |
| CF-1 / 2-N | CF-1 / 2-NS | 0,5 | 0.344 | 0.19 | 1/2 | 1/4 | 10-32 | 1/8 | 15 | 720 | 620 |
| CF-1 / 2 | CF-1 / 2-S | 0,5 | 0,375 | 0.19 | 5/8 | 1/4 | 10-32 | 1/8 | 15 | 790 | 680 |
| CF-9/16 | CF-9/16-S | 0.5625 | 0,375 | 0.19 | 5/8 | 1/4 | 10-32 | 1/8 | 15 | 790 | 680 |
| CF-5/8-N | CF-5/8-NS | 0.625 | 0.406 | 0.25 | 5/8 | 5/16 | 1/4-28 | 1/8 | 35 | 1065 | 930 |
| CF-5/8 | CF-5/8-S | 0.625 | 0.4375 | 0.25 | 3/4 | 5/16 | 1/4-28 | 1/8 | 35 | 1215 | 955 |
| CF-11/16 | CF-11/16-S | 0.6875 | 0.4375 | 0.25 | 3/4 | 5/16 | 1/4-28 | 1/8 | 95 | 1215 | 955 |
| CF-3/4 | CF-3/4-S | 0.75 | 0,5 | 0,375 | 7/8 | 3/8 | 3/8-24 | 3/16 | 95 | 2065 | 1660 |
| CF-7/8 | CF-7/8-S | 0.875 | 0,5 | 0,375 | 7/8 | 3/8 | 3/8-24 | 3/16 | 250 | 2065 | 1660 |
| CF-1 | CF-1-S | 1 | 0.625 | 0.4375 | 1 | 1/2 | 7/16-20 | 3/16 | 250 | 3060 | 2225 |
| CF-1 1/8 | CF-1 1/8-S | 1.125 | 0.625 | 0.4375 | 1 | 1/2 | 7/16-20 | 3/16 | 350 | 3060 | 2225 |
| CF-1 1/4 | CF-1 1/4-S | 1.25 | 0.75 | 0,5 | 1 1/4 | 5/8 | 1/2-20 | 3/16 | 350 | 4250 | 3930 |
| CF-1 3/8 | CF-1 3/8-S | 1.375 | 0.75 | 0,5 | 1 1/4 | 5/8 | 1/2-20 | 3/16 | 650 | 4250 | 3930 |
| CF-1 1/2 | CF-1 1/2-S | 1.5 | 0.875 | 0.625 | 1 1/2 | 3/4 | 5/8-18 | 3/16 | 650 | 5640 | 4840 |
| CF-1 5/8 | CF-1 5/8-S | 1.625 | 0.875 | 0.625 | 1 1/2 | 3/4 | 5/8-18 | 3/16 | 1250 | 5640 | 4840 |
| CF-1 3/4 | CF-1 3/4-S | 1.75 | 1 | 0.75 | 1 3/4 | 7/8 | 3/4-16 | 3/16 | 1250 | 7920 | 6385 |
| CF-1 7/8 | CF-1 7/8-S | 1.875 | 1 | 0.75 | 1 3/4 | 7/8 | 3/4-16 | 3/16 | 1500 | 7920 | 6385 |
| CF-2 | CF-2-S | 2 | 1.25 | 0.875 | 2 | 1 | 7/8-14 | 3/16 | 1500 | 10570 | 8090 |
| CF-2 1/4 | CF-2 1/4-S | 2.25 | 1.25 | 0.875 | 2 | 1 | 7/8-14 | 3/16 | 2250 | 10570 | 8090 |
| CF-2 1/2 | CF-2 1/2-S | 2.5 | 1.5 | 1 | 2 1/4 | 1 1/8 | 1-14 | 3/16 | 2250 | 16450 | 11720 |
| CF-2 3/4 | CF-2 3/4-S | 2.75 | 1.5 | 1 | 2 1/4 | 1 1/8 | 1-14 | 3/16 | 3450 | 16450 | 11720 |
| CF-3 | CF-3-S | 3 | 1.75 | 1.25 | 2 1/2 | 1 1/4 | 1 1/4-12 | 1/4 | 3450 | 24910 | 15720 |
| CF-3 1/4 | CF-3 1/4-S | 3.25 | 1.75 | 1.25 | 2 1/2 | 1 1/4 | 1 1/4-12 | 1/4 | 4200 | 24910 | 15720 |
| CF-3 1/2 | CF-3 1/2-S | 3.5 | 2 | 1.375 | 2 3/4 | 1 3/8 | 1 3/8-12 | 1/4 | 5000 | 31625 | 22800 |
| CF-4 | CF-4-S | 4 | 2.25 | 1.5 | 3 1/2 | 1 1/2 | 1 1/2-12 | 1/4 | 5000 | 44770 | 29985 |
| CF-5-S | 5 | 2.75 | 2 | 5 1/16 | 2 9/16 | 2-12 | 1/4N.PT | 5000 | 67950 | 46575 | |
| CF-6-S | 6 | 3.25 | 2.5 | 6 | 3 | 2 1/2-12 | 1/4N.PT | 5000 | 80450 | 60000 | |
| CF-7-S | 7 | 3.75 | 3 | 7 11/16 | 4 1/8 | 3-12 | 1/4N.PT | 5000 | 106930 | 75380 | |
| CF-8-S | 8 | 4.25 | 3.25 | 8 1/2 | 4 1/4 | 3 1/4-4 | 1/4N.PT | 5000 | 144100 | 92200 | |
| CF-9-S | 9 | 4.75 | 3.75 | 9 1/2 | 4 3/4 | 3 1/2-4 | 1/4N.PT | 5000 | 183430 | 113260 | |
| CF-10-S | 10 | 5.25 | 4.25 | 10 | 4 3/4 | 3 1/2-4 | 1/4N.PT | 5000 | 215565 | 131545 |
Resimler
