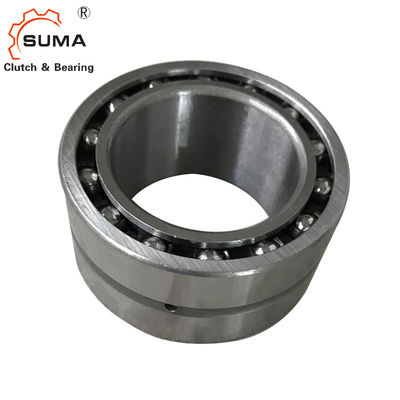

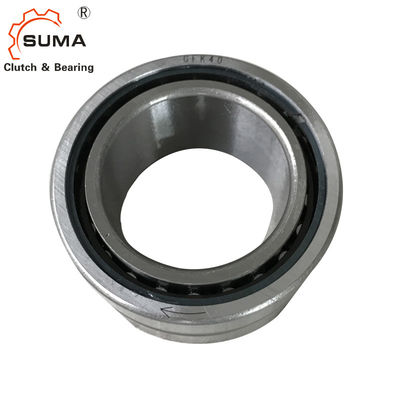

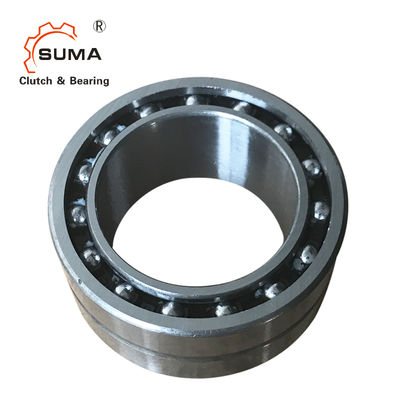

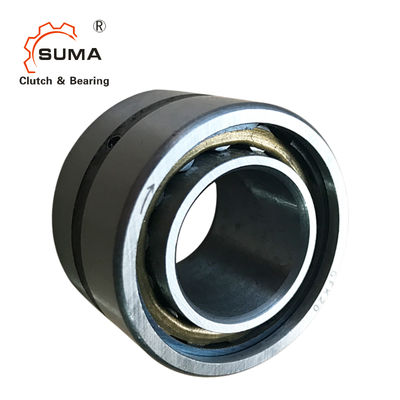

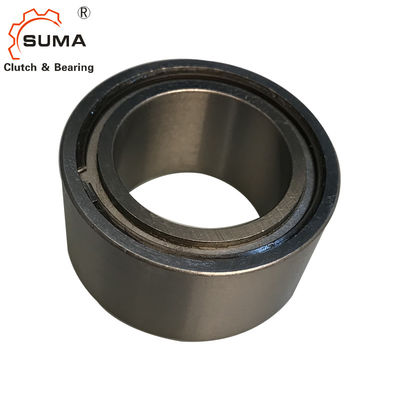

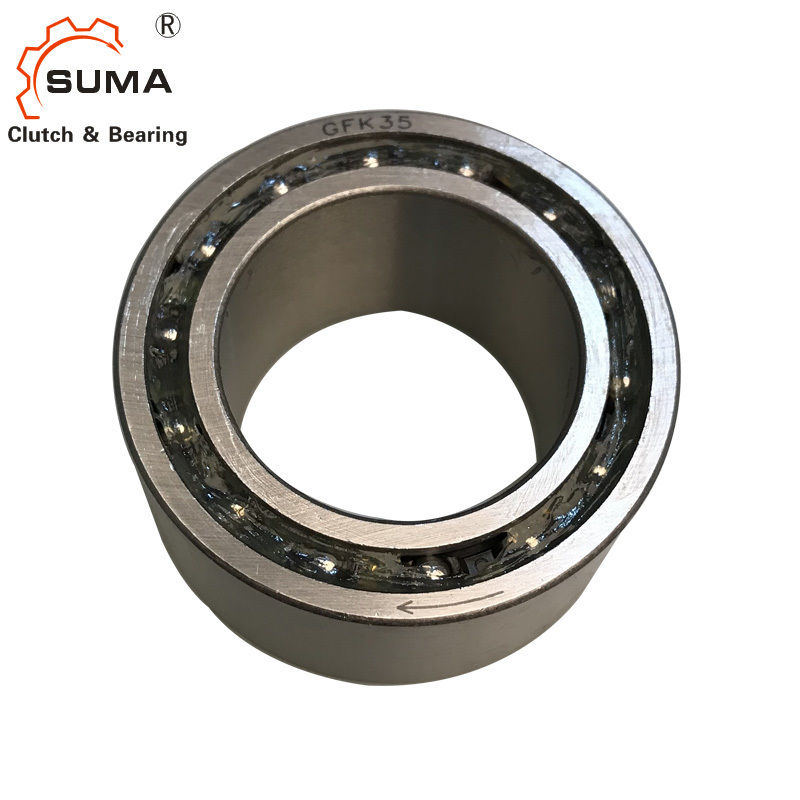

Name: GFK 35 Sprag Clutch Bearing 55mm OD Sealed Steel
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: GFK 35
Price: 50.00 USD
Availability: InStock

Ana sayfa Ürünler Tek Yönlü Debriyaj Yatağı

GFK 35 Sprag Clutch Bearing 55mm OD Sealed Steel

Ürün ayrıntıları:

Menşe yeri:	Jiangsu, Çin
Marka adı:	SUMA
Model numarası:	GFK 35

Ödeme & teslimat koşulları:

Min sipariş miktarı:	10
Fiyat:	$45-55

İletişim

Detaylı ürün tanımı

Hassas derecelendirme:	P0	Conta Tipi:	Kapalı
Tip:	Sprag	Delik:	35 mm
Yağlama:	Gres	Malzeme:	Çelik
Dış çap:	55mm	Çalışma sıcaklığı:	-20 ° C ila + 100 ° C
yapı:	frag freewheel	Tork kapasitesi:	106nm
Abartılı hız:	4600 min-1	Rulman serisi:	5907
Dinamik yük:	8200 N	Statik yük:	5200 N
Ağırlık:	0.2 kg
Vurgulamak:	35mm sprag clutch bearing sealed , steel one way clutch bearing 55mm , GFK sprag clutch bearing with warranty

GFK One Way Clutch Bearing GFK 35 Sprag Type Clutch

Product Overview

The GFK One Way Clutch Bearing is a sprag freewheel integrated into a 59 series ball bearing, designed to provide high torque capacity with minimal outside diameter.

Key Features

Sprag freewheel design integrated with ball bearing
High torque capacity in compact dimensions
Available in grease lubricated version (oil bath lubrication possible)
Requires seals for all lubrication types
Bearing-supported construction

Installation Requirements

Torque transmission must be ensured by press fit assembly into a rigid outer housing with R6 tolerance, and onto a shaft with P5 tolerance.

Technical Specifications

Type	Size d [mm]	TKN [Nm]	n_imax [min^-1]	n_amax [min^-1]	Bearing Series	Rollers dyn. C [N]	Balls dyn. C [N]	Rollers stat. C₀ [N]	Balls stat. C₀ [N]	D [mm]	L [mm]	r [mm]	Weight [kg]
GFK	20	51	5500	4000	5904	5600	4400	2900	2750	37	23	0.5	0.09
GFK	25	65	5300	3800	5905	6300	5300	3450	3350	42	23	0.5	0.11
GFK	30	95	5000	3500	5906	7700	5500	4600	3650	47	23	0.5	0.13
GFK	35	204	4600	3200	5907	8200	8500	5200	5700	55	27	1	0.2
GFK	40	315	4200	3000	5908	8650	9300	5750	6700	62	30	1	0.3
GFK	45	370	3800	2500	5909	9200	9700	6350	7300	68	30	1	0.34
GFK	50	460	3400	2200	5910	9650	10000	6950	7800	72	30	1	0.36
