DC2222C Sprag Clutch Bearing 22.225mm Bore 63Nm Torque

DC2222C Sprag Clutch Bearing 22.225mm Bore 63Nm Torque
DC2222C Sprag Clutch Bearing 22.225mm Bore 63Nm Torque DC2222C Sprag Clutch Bearing 22.225mm Bore 63Nm Torque DC2222C Sprag Clutch Bearing 22.225mm Bore 63Nm Torque

Büyük resim :  DC2222C Sprag Clutch Bearing 22.225mm Bore 63Nm Torque

Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: SUMA
Model numarası: DC2222C
Ödeme & teslimat koşulları:
Min sipariş miktarı: 2
Fiyat: $6.20-7
İletişim

DC2222C Sprag Clutch Bearing 22.225mm Bore 63Nm Torque

Açıklama
Dış çap: 38.885mm Delik: 22,225 mm
Norminal tork: 63nm Ağırlık: 0.03kg
Sprags Miktarı: 12 Aşırı Hız (dış): 750rpm
Aşırı Hız (İç): 1500rpm Kalınlık: 10 mm
Fahişe malzemesi: GCR15 Hassas derecelendirme: P0
Conta Tipi: Açık Tip: Sprag
Yüzey sertliği: HRC 60-62 Çekirdek Sertliği: HRC35-45
Maksimum konik: 25mm başına 0.007mm
Vurgulamak:

22.225mm bore sprag clutch bearing

,

63Nm torque one way clutch bearing

,

DC2222C sprag clutch bearing

DC2222C 22.225*38.885*25.4mm Freewheel Overrunning Clutch Sprag One Way Bearings

The DC2222C is a high-performance sprag type freewheel overrunning clutch bearing designed for industrial applications requiring reliable one-way rotation control.

DC2222C Sprag Clutch Bearing 22.225mm Bore 63Nm Torque 0
Technical Specifications
Item DC2222G-N
Outer Diameter 38.885mm
Bore Size 22.225mm
Nominal Torque 63
Weight 0.03kg
Sprags Quantity 12
Overrunning Speed (outer race) 750
Overrunning Speed (inner race) 1500
Port Shanghai; Ningbo
Delivery Time 1-2 Days
Product Features
  • Sprag type freewheel cage design without inner or outer races
  • Requires installation in a design providing races, bearing support for axial and radial loads
  • Compatible with all standard lubricants used in power transmission equipment
Tolerance Specifications

The sprag space tolerance must not be exceeded. Inner and outer races must both have a minimum plain width "e", without any recess, to ensure proper freewheel function.

Hardness Requirements

Surface hardness: HRC 60 to 62 (minimum 0.6mm depth)

Core hardness: HRC 35 to 45

Surface roughness: ≤ 22CLA

Maximum taper between races: 0.007mm for 25mm width

Available Sizes
DC2222C Sprag Clutch Bearing 22.225mm Bore 63Nm Torque 1
Type Drag Torque (NM) Size (mm) Number of Clips
DC2222G 50 22.225
DC2776 95 27.762
DC3034 99 30.34
DC3175(3C) 127 31.75 3
DC3809A 220 38.092
DC4127(3C) 179 41.275 3
DC4445A 290 44.45
DC4972(4C) 245 49.721 4
DC5476A 420 54.765
Product Images

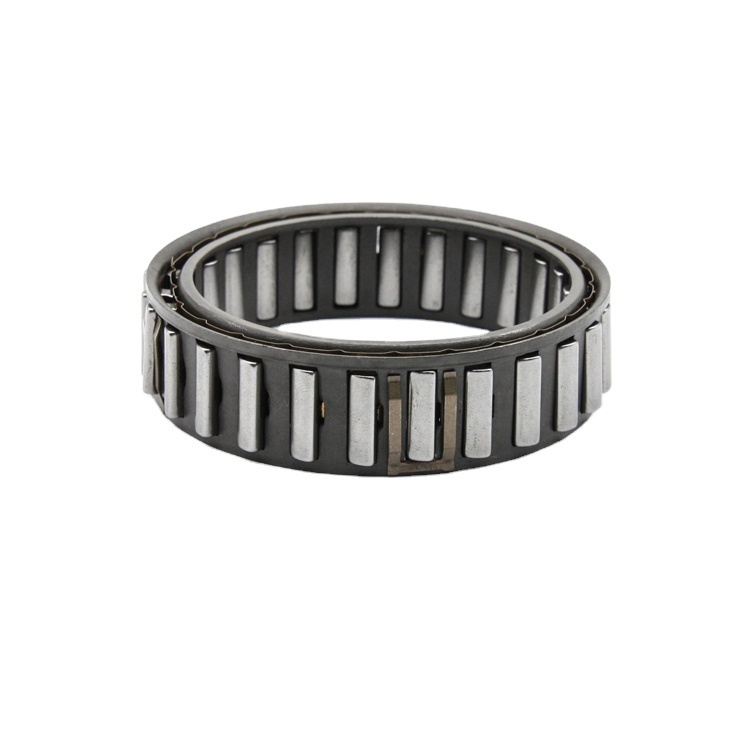

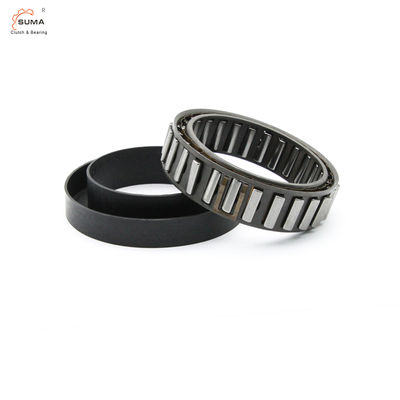

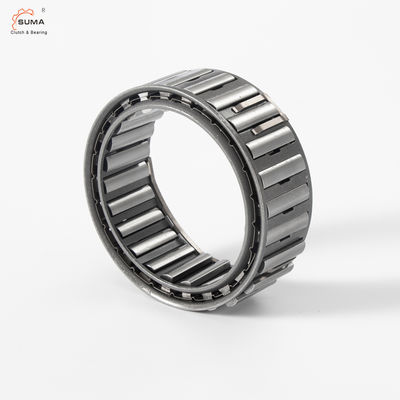

DC2222C Sprag Clutch Bearing 22.225mm Bore 63Nm Torque 2 DC2222C Sprag Clutch Bearing 22.225mm Bore 63Nm Torque 3 DC2222C Sprag Clutch Bearing 22.225mm Bore 63Nm Torque 4
Packaging & Shipping
DC2222C Sprag Clutch Bearing 22.225mm Bore 63Nm Torque 5

Standard Packaging: Each unit in white box + 19*18*9cm box + 29*28*19CM carton box

Bulk Packaging: For orders over 100kg - Carton box + Wooden Box/Wooden Pallet

Frequently Asked Questions
How do you pack the goods?

Total less than 25 KG: Each in white box + 19*18*9cm box + 29*28*19CM carton box

Total Weight over 100KG: Carton box + Wooden Box / Wooden Pallet

Can I get samples from you?

Samples are available for quality verification and testing purposes.

Can you promise to deliver the goods in time?

Small items: In stock, ready for immediate shipment

Medium Items: 10-15 Days production time

Big items: 20-25 Days production time
