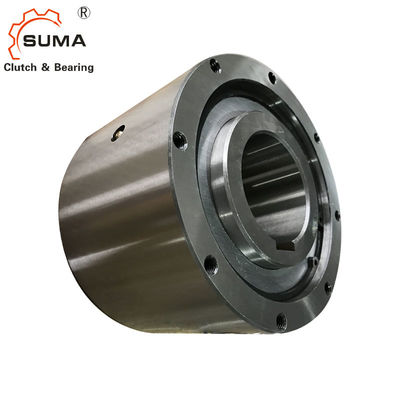

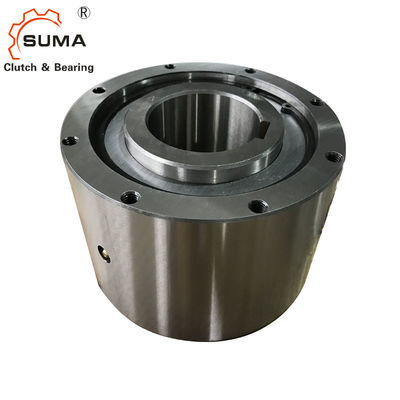

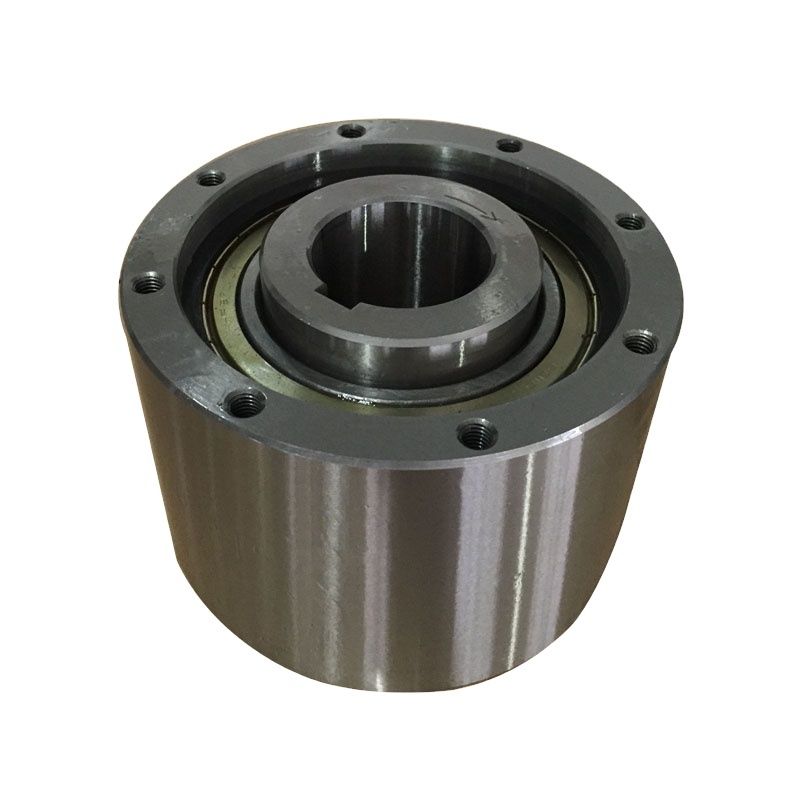

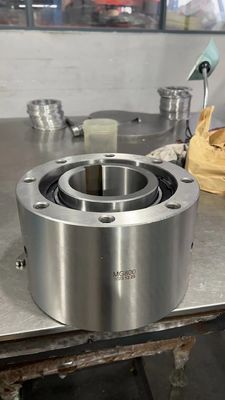

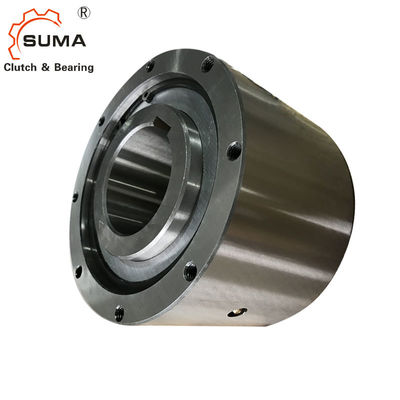

Name: CAM Clutch Bearing MI500 MG500 31.5mm Bore Sealed P0 Precision
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: MI500 mg500
Price: 100 USD
Availability: InStock

Ana sayfa Ürünler Tek Yönlü Debriyaj Yatağı

CAM Clutch Bearing MI500 MG500 31.5mm Bore Sealed P0 Precision

Ürün ayrıntıları:

Menşe yeri:	Jiangsu, Çin
Marka adı:	Suma
Model numarası:	MI500 mg500

Ödeme & teslimat koşulları:

Min sipariş miktarı:	2
Fiyat:	$100

İletişim

Detaylı ürün tanımı

Hassas derecelendirme:	P0	Conta Tipi:	Kapalı
Tip:	KAM	Delik Çapı:	31,5 mm
Kere:	7mm x3mm	Ağırlık:	5,0 KG
Şaft Toleransı:	H6 veya H7 (JIS Standard)	Anahtar standart:	JIS B1301-1959
Maksimum sıcaklık:	70°C	Yağlama:	Yağ mühürlenmez (kullanımdan önce arz)
Montaj Yönü:	Dikey (ayrıntılar için danışın)	It yükü:	Desteklenmiyor (diğer cihazları kullanın)
Anahtar türü:	Yalnızca paralel anahtar	Basınçlı havalandırma:	MG serisi için gerekli
Abartılı hız:	MG750 ve üstü belirtin
Vurgulamak:	CAM Clutch Bearing 31.5mm bore , Sealed P0 precision clutch bearing , One way clutch bearing with warranty

Cam Clutch MI500 MG500 One Way Clutch Bearing

Product Features

MG Series Cam Clutch is designed for inner race overrunning applications
MI Series Cam Clutch is optimized for indexing applications
Easy attachment to pulleys, gears, or sprockets using high-tension bolts
Compatible with JIS standard H6 or H7 tolerance bores
Includes pressure ventilation hole for MG Series models

Installation Guidelines

Use only parallel keys (tapered keys are prohibited)
For shock loads or full torque capacity, use hardened key and shaft
Apply mounting pressure only to the inner race, never the outer race
Thrust load must be handled by separate devices, not the clutch
For MG Series models MG750 and above, specify overrunning speed when ordering
Consult manufacturer for vertical mounting applications

Operating Conditions

Monitor temperature - longevity decreases above 70°C outer race temperature
For continuous overrunning at medium/high speeds, consider oil bath or forced lubrication
No oil is sealed during shipment - add appropriate lubrication before use

Model Specifications
