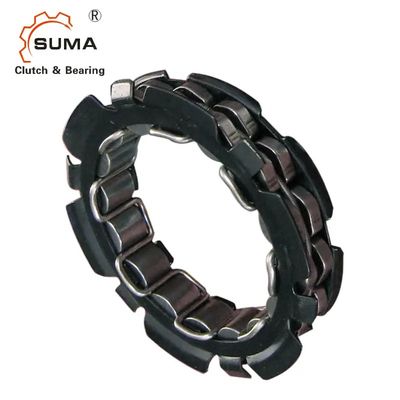

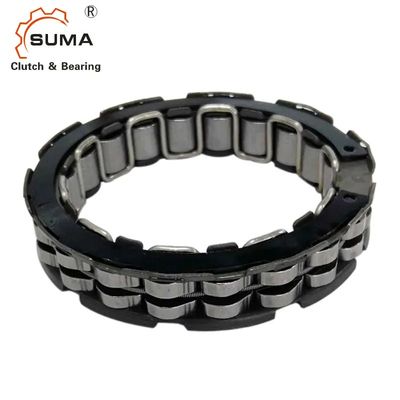

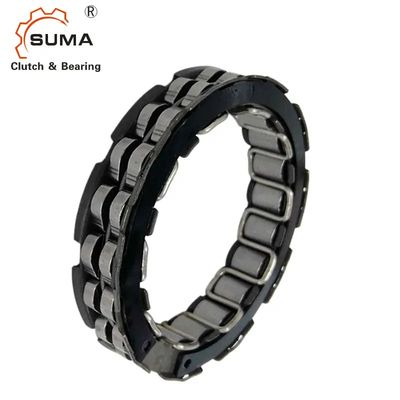

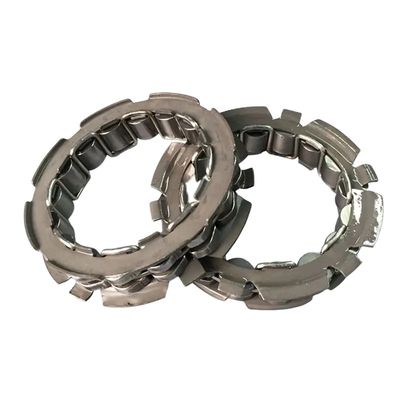

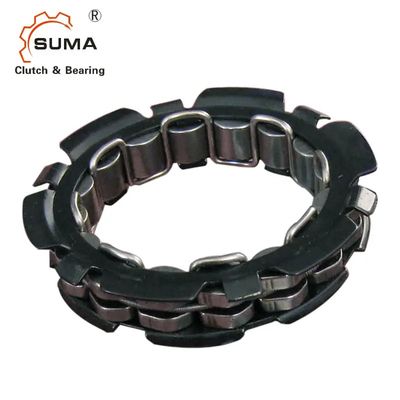

Chrome Steel One Way Bearing with 13.3mm Thickness and 45 Kgf-m Torque for Motorcycle Starting Clutch

Chrome Steel One Way Bearing with 13.3mm Thickness and 45 Kgf-m Torque for Motorcycle Starting Clutch
Chrome Steel One Way Bearing with 13.3mm Thickness and 45 Kgf-m Torque for Motorcycle Starting Clutch Chrome Steel One Way Bearing with 13.3mm Thickness and 45 Kgf-m Torque for Motorcycle Starting Clutch Chrome Steel One Way Bearing with 13.3mm Thickness and 45 Kgf-m Torque for Motorcycle Starting Clutch Chrome Steel One Way Bearing with 13.3mm Thickness and 45 Kgf-m Torque for Motorcycle Starting Clutch Chrome Steel One Way Bearing with 13.3mm Thickness and 45 Kgf-m Torque for Motorcycle Starting Clutch Chrome Steel One Way Bearing with 13.3mm Thickness and 45 Kgf-m Torque for Motorcycle Starting Clutch

Büyük resim :  Chrome Steel One Way Bearing with 13.3mm Thickness and 45 Kgf-m Torque for Motorcycle Starting Clutch

Ürün ayrıntıları:
Menşe yeri: Jiangsu, Çin
Marka adı: SUMA
Model numarası: FWD 332008 PRB
Ödeme & teslimat koşulları:
Min sipariş miktarı: 2
Fiyat: $7.50-8
İletişim

Chrome Steel One Way Bearing with 13.3mm Thickness and 45 Kgf-m Torque for Motorcycle Starting Clutch

Açıklama
Hassas derecelendirme: P0 Conta Tipi: Açık
Tip: Sprag Malzeme: Krom çeliği
Kalınlık: 13.3 mm Tork: 45 Kgf-m
Ağırlık: 92 g İç Yarış: 51,71 mm
Dış yarış: 68.377mm Wmin: 13.3 mm
A: 71 mm B: 74 mm
C: 1.0 mm teşekkürler: 45 Kgf-m
Ağırlık: 98 g
Vurgulamak:

13.3mm Thickness One Way Bearing

,

45 Kgf-m Torque Sprag Type Bearing

,

P0 Precision Rating One Way Clutch Bearing

One Way Bearing FWD332008PRB One Way Sprag Type Bearing
One Way Bearing FWD332008CRB One Way Sprag Type Bearing
Chrome Steel One Way Bearing with 13.3mm Thickness and 45 Kgf-m Torque for Motorcycle Starting Clutch 0
Product Description
  • Application: Primarily used on motorcycle starter
  • Delivery time: 1 day for the sample, 7 days for bulk orders
  • Payment terms: TT, L/C, D/P, D/A, Western Union
  • Package: Wooden box, pulley or customizable packaging
Chrome Steel One Way Bearing with 13.3mm Thickness and 45 Kgf-m Torque for Motorcycle Starting Clutch 1
Technical Specifications
Type Inner race (mm) Outer race (mm) Wmin (mm) A (mm) B (mm) C (mm) Tkn (Kgf-m) Weight (g)
FWD331608CRS 39.627 56.294 13 60 62 1.0 27 78
FWD331808CRS 45.665 62.332 13.3 65 68 1.0 35 88
FWD332008CRS 51.71 68.377 13.3 71 74 1.0 45 98
FWD332211CRS 57.76 74.427 16.3 76 79 1.0 78 14
Note: Opposite overrunning direction could be ordered separately
Packaging
Chrome Steel One Way Bearing with 13.3mm Thickness and 45 Kgf-m Torque for Motorcycle Starting Clutch 2 Chrome Steel One Way Bearing with 13.3mm Thickness and 45 Kgf-m Torque for Motorcycle Starting Clutch 3
Company Information
Chrome Steel One Way Bearing with 13.3mm Thickness and 45 Kgf-m Torque for Motorcycle Starting Clutch 4 Chrome Steel One Way Bearing with 13.3mm Thickness and 45 Kgf-m Torque for Motorcycle Starting Clutch 5
FAQ
Chrome Steel One Way Bearing with 13.3mm Thickness and 45 Kgf-m Torque for Motorcycle Starting Clutch 6 Chrome Steel One Way Bearing with 13.3mm Thickness and 45 Kgf-m Torque for Motorcycle Starting Clutch 7
