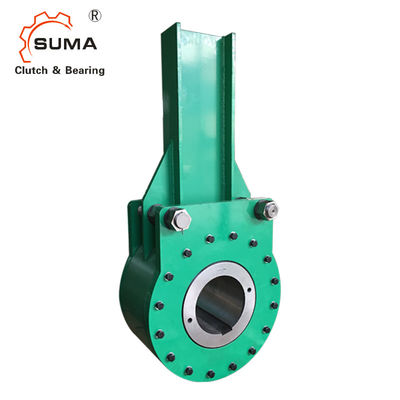

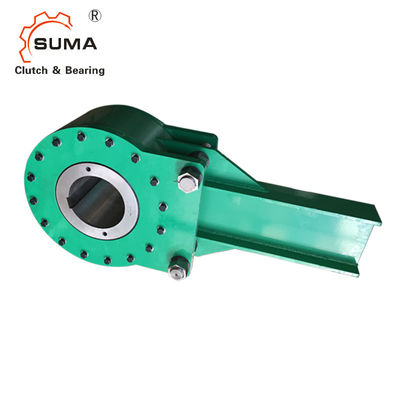

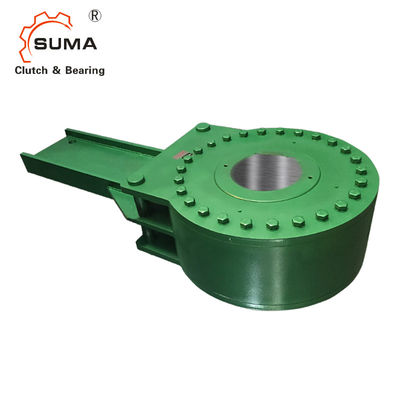

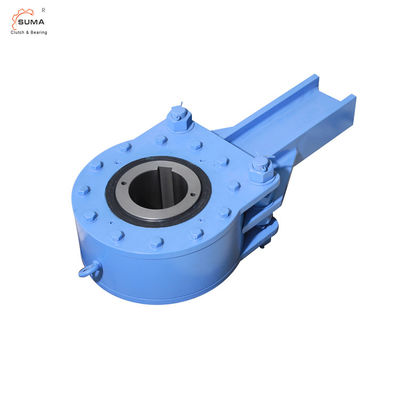

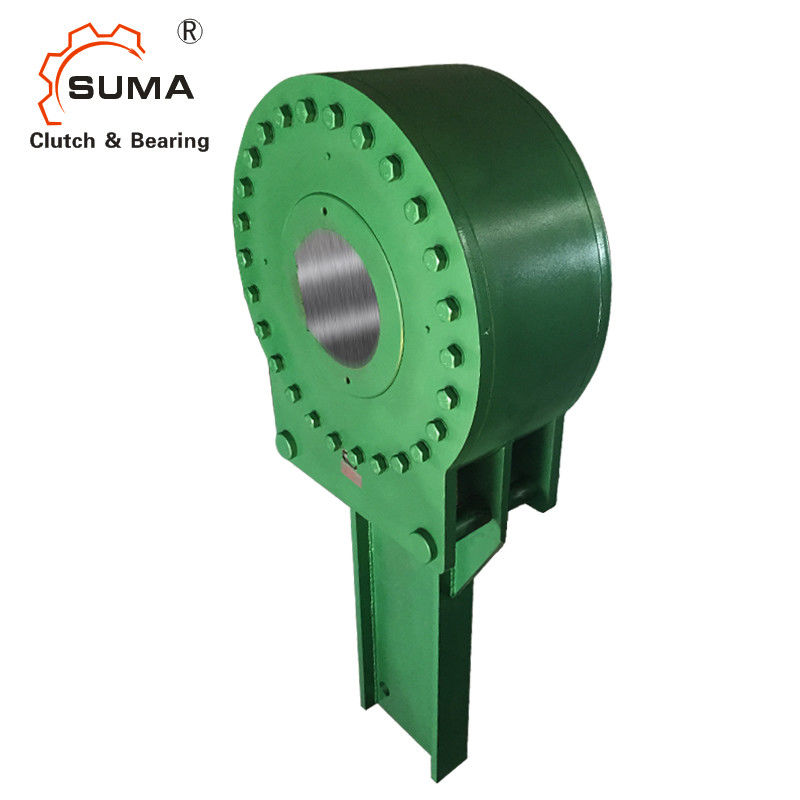

Name: FRHD900 Power Transmission Part Freewheel Backstop Clutch One Way for Conveyors
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: FRHD900
Price: 900.00 USD
Availability: InStock

Ana sayfa Ürünler Backstop Rulman

FRHD900 Power Transmission Part Freewheel Backstop Clutch One Way for Conveyors

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	SUMA
Sertifika:	ISO SGS
Model numarası:	FRHD900

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 adet
Fiyat:	USD800-USD1000 PER PIECE
Ambalaj bilgileri:	ahşap kutu
Teslim süresi:	15-20 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, Paypal
Yetenek temini:	Ayda 200 adet

İletişim

Detaylı ürün tanımı

Ürün Adı:	Geri Döndürmez Debriyaj Rulmanları FRHD900	Malzeme:	Yatak Çelik GCR15
Delik Aralığı:	4,5 inç	Dış çap. Menzil:	10,5 inç
Tork aralığı:	360 lb-ft	Paket:	ahşap kutu
Garanti:	1 Yıl	OEM:	Kabul etmek
Vurgulamak:	FRHD900 freewheel backstop clutch , one way clutch for conveyors , backstop bearing power transmission part

FRHD900 Power Transmission Part Freewheel Backstop Clutch One Way for Conveyors

Features

Complete Freewheels FRHD with lever arm are sealed sprag freewheels with ball bearings. They are supplied oil-filled and ready for installation. The freewheels are arranged on through shafts or shaft ends.

The freewheels FRHD are used as:
➧ Backstops
for low-speed applications. They are designed for use in inclined conveyor-belt systems, elevators and pumps. Taconite seals protect the backstops when conditions are dirty and dusty. Nominal torques up to 900 000 lb-ft. Bores up to 21 inch

Dimensions and Capacities

Freewheel Size	Maximum torque MM lb-ft	Nominal torque MN lb-ft	Maximum speed inner ring freewheels rpm	Bore d max. inch	A inch	C inch	D inch	E inch	H inch	L inch	O inch	P inch	Q inch	Weight lbs
FRHD 700	7500	3750	620	3.44	8	6	5.25	0.5	36	6	6.75	16.38	32	135
FRHD 775	15000	7500	540	3.75	9.75	8	6	1	42.88	7.5	9	20.38	38	310
FRHD 800	24000	12000	460	4.5	10.5	10	7	1	43.25	8	9.5	22.13	38	360
FRHD 900	37000	18500	400	5.44	12	10	8	1.5	54	7.63	9.38	22.75	48	480
FRHD 950	46000	23000	360	7	14	12	10	1.5	69	8	10	25	62	530
FRHD 1000	56000	28000	360	7	17	8	9	4.13	80.38	8.75	-	23.13	72	550
FRHD 1100	90000	45000	360	7	17	8	9	4.13	80.38	10	-	23.13	72	795
FRHD 1200	185000	92500	250	9	23	10	12	4.94	89	11	-	28	78	1300
FRHD 1300	220000	110000	220	10	25	12	14	5.25	95	12	-	30	82.88	1674
FRHD 1400	280000	140000	200	12	30	18	16	6.25	107	13	-	36	94	2200
FRHD 1450	380000	190000	200	12	30	18	16	6.25	107	15	-	36	94	2500
FRHD 1500	580000	290000	200	12	31	18	15.1	6.25	107	17.6	-	36	94	2440
FRHD 1600	746000	373000	140	14	32.5	20	17.6	6.25	124	19.3	-	30.44	108	3400
FRHD 1700	1250000	625000	120	18	42.5	24.5	23	7.88	140	20	-	48	120	7000
FRHD 1800	1800000	900000	100	21	52	30	26.5	10.5	170	23	-	54	144	12000
