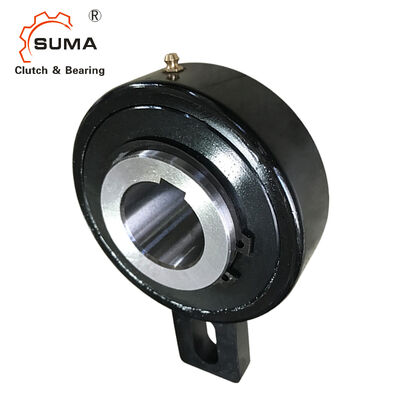

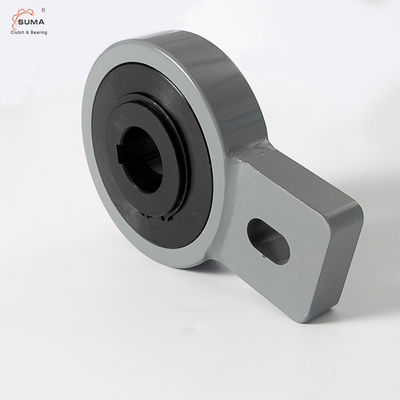

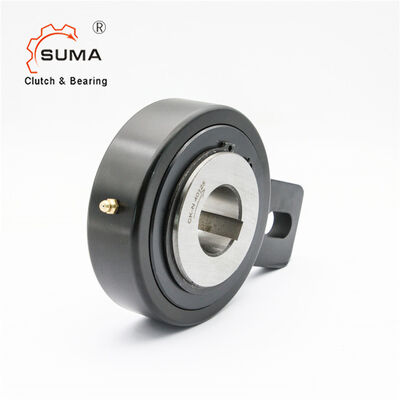

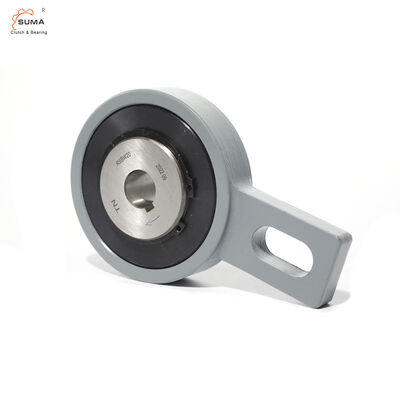

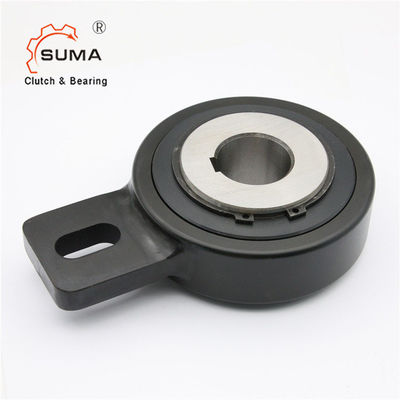

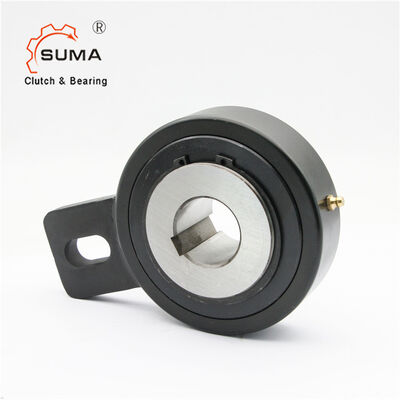

Name: RSBW50 RSBW 50 One Way Sprag Bearing Backstop Clutch for Bucket Elevator
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: RSBW50
Price: 87.00 USD
Availability: InStock

Ana sayfa Ürünler Backstop Rulman

RSBW50 RSBW 50 One Way Sprag Bearing Backstop Clutch for Bucket Elevator

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	SUMA
Sertifika:	ISO SGS
Model numarası:	RSBW50

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1
Fiyat:	USD80-USD95PER PIECE
Ambalaj bilgileri:	Karton kutu
Teslim süresi:	7-10 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, Paypal
Yetenek temini:	Ayda 1000 pc

İletişim

Detaylı ürün tanımı

Ürün Adı:	Geri Döndürmez Debriyaj RSBW50	Malzeme:	GCr15 Rulman Çeliği
Boyut:	4513252mm	Tork kapasitesi:	1295Nm
Dönme hızı:	300rpm	Birim ağırlık:	4,6 kg
Garanti:	1 Yıl	OEM:	Kabul etmek
Vurgulamak:	RSBW50 backstop clutch bearing , bucket elevator sprag bearing , one way backstop bearing

RSBW50 RSBW 50 One Way Sprag Bearing Backstop Clutch for Bucket Elevator
Features

Application:
Primarily used as a backstop. This type provide a high torque capacity with a minimum space requirement.

Structure:
Type RSBW is a DC sprag type freewheel. It is self-contained, centered by plain bearings for low rotational speeds, and sealed using shield protected O rings.

Technical Datas

Product name	Sprag type freewheel clutches
Model	RSBW45 / RSBW50 / RSBW55
Torque capacity	1295Nm
Overrunning speeds	300 min -1
Inner diameter	45mm / 50mm/ 55mm
Outer diameter	132mm
Thickness	52mm
Weight	4.6kg
Application	Fishinery machinery, Reducer, household appliances
Package	Carton Box
Payment terms	TT, L/C, D/A, D/P, Western Union, Paypal
Delivery time	7-10 Days

Dimensions and Capacities

RSBW50 RSBW 50 One Way Sprag Bearing Backstop Clutch for Bucket Elevator 0

Type	Size		Overrunning Speeds									Weight
RSBW	d^H7	T_KN¹)	n_imax	D	L 1	F	E	B	N	L	b^H11
	[mm]	[Nm]	[min^-1]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[kg]
	20	375	400	106	35	113	102.5	40	35	15	18	2
	25	606	400	106	48	113	102.5	40	35	15	18	2.6
	30	606	400	106	48	113	102.5	40	35	15	18	2.5
	35M	375	400	106	35	113	102.5	40	35	15	18	2
	35	606	400	106	48	113	102.5	40	35	15	18	2.4
	40	1295	300	132	52	125	115	60	35	15	18	4.6
	45	1295	300	132	52	125	115	60	35	15	18	4.5
	50	1295	300	132	52	125	115	60	35	15	18	4.5
	55	1295	300	132	52	125	115	60	35	15	18	4.4
	60	2550	250	161	54	140	130	70	35	15	18	6.5
	70	2550	250	161	54	140	130	70	35	15	18	6.4
	80	4875	200	190	70	165	150	70	45	20	25	9.9
	90	4875	200	190	70	165	150	70	45	20	25	9.8
