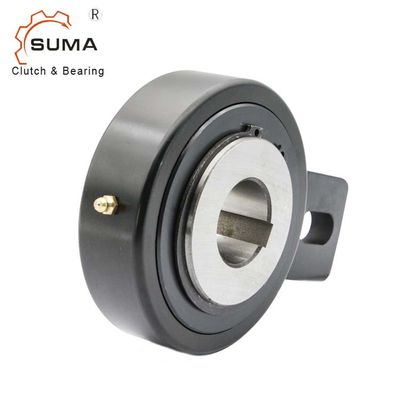

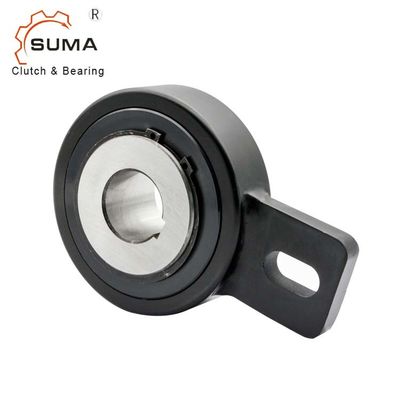

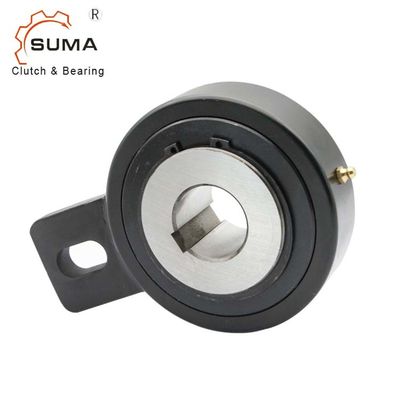

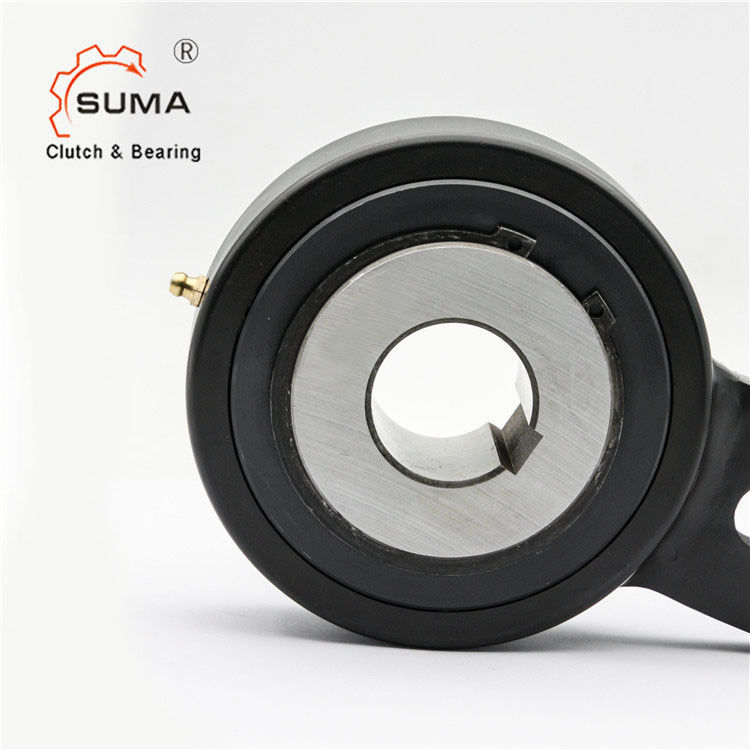

Name: RSBW 30 RSBW30 One Way Bearings Backstop Clutch Overrunning Clutch
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: RSBW30
Price: 78.00 USD
Availability: InStock

Ana sayfa Ürünler Fren Debriyaj Yatağı

RSBW 30 RSBW30 One Way Bearings Backstop Clutch Overrunning Clutch

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	SUMA
Sertifika:	ISO SGS
Model numarası:	RSBW30

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1
Fiyat:	USD70-USD86 PER PIECE
Ambalaj bilgileri:	Karton kutu
Teslim süresi:	7-10 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, Paypal
Yetenek temini:	Ayda 1000 pc

İletişim

Detaylı ürün tanımı

Ürün Adı:	Geri Döndürmez Debriyaj RSBW30	Malzeme:	GCr15 Rulman Çeliği
Boyut:	3510635mm	Tork kapasitesi:	375Nm
Dönme hızı:	400 devir	Birim ağırlık:	2 kg
Garanti:	1 Yıl	OEM:	Kabul etmek
Vurgulamak:	RSBW30 one way backstop clutch , sprag clutch bearing with warranty , overrunning clutch for industrial use

RSBW 30 RSBW30 One Way Bearings Backstop Clutch Overrunning Clutch
Features

Application:
Primarily used as a backstop. This type provide a high torque capacity with a minimum space requirement.

Structure:
Type RSBW is a DC sprag type freewheel. It is self-contained, centered by plain bearings for low rotational speeds, and sealed using shield protected O rings.

Technical Datas

Product name	Sprag type freewheel clutches
Model	RSBW30
Torque capacity	375Nm
Overrunning speeds	400 min -1
Inner diameter	30mm
Outer diameter	106mm
Thickness	35mm
Weight	4.6kg
Application	Fishinery machinery, Reducer, household appliances
Package	Carton Box
Payment terms	TT, L/C, D/A, D/P, Western Union, Paypal
Delivery time	7-10 Days

Dimensions and Capacities

RSBW 30 RSBW30 One Way Bearings Backstop Clutch Overrunning Clutch 0

Type	Size		Overrunning Speeds									Weight
RSBW	d^H7	T_KN¹)	n_imax	D	L 1	F	E	B	N	L	b^H11
	[mm]	[Nm]	[min^-1]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[kg]
	20	375	400	106	35	113	102.5	40	35	15	18	2
	25	606	400	106	48	113	102.5	40	35	15	18	2.6
	30	606	400	106	48	113	102.5	40	35	15	18	2.5
	35M	375	400	106	35	113	102.5	40	35	15	18	2
	35	606	400	106	48	113	102.5	40	35	15	18	2.4
	40	1295	300	132	52	125	115	60	35	15	18	4.6
	45	1295	300	132	52	125	115	60	35	15	18	4.5
	50	1295	300	132	52	125	115	60	35	15	18	4.5
	55	1295	300	132	52	125	115	60	35	15	18	4.4
	60	2550	250	161	54	140	130	70	35	15	18	6.5
	70	2550	250	161	54	140	130	70	35	15	18	6.4
	80	4875	200	190	70	165	150	70	45	20	25	9.9
	90	4875	200	190	70	165	150	70	45	20	25	9.8
